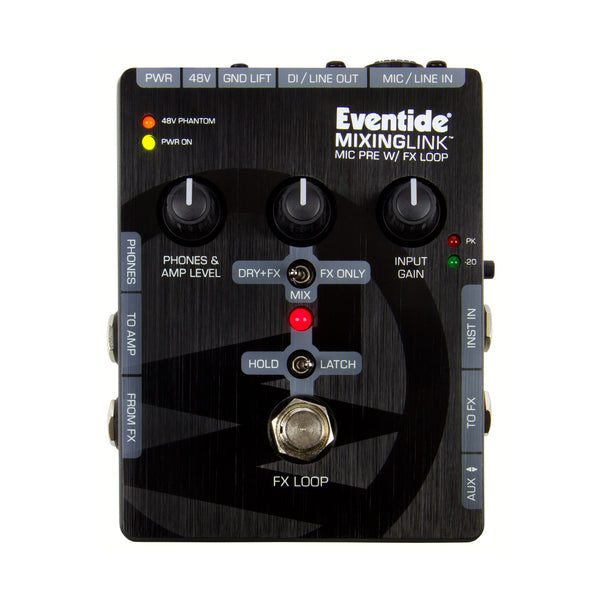

pedal links MixingLink Mic Pre & FX Loop for Microphone Signal Processing – EventideHigh Quality Mic Pre with FX Loop A stompbox size audio toolkit that includes a quiet high gain mic pre, 48V phantom power and enough I O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting and combining, complete re amp setup, impedance and gain matching, mixing, hotel practice amp, a b switch and more. Features: Effects loop send and return accommodates balanced and unbalanced

High Quality Mic Pre with FX Loop

A stompbox size audio toolkit that includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing, hotel practice amp, a/b switch and more.

Features:

• Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals easily
• Latching or momentary footswitch control of effects loop for performance effects
• Works with a wide range of microphones including condenser and ribbon microphones with up to 65dB of clean gain
• Aux I/O connection supporting stereo input and mobile device send level
• Guitar amp output and headphone monitor output with separate master volume control
• International universal 9VDC power supply included, or 9V battery, or can be powered by the PowerMax
• 48V phantom power for condenser microphones
• Balanced XLR output which supports DI and Line levels (-10dB to +18dBu)
• Instrument and balanced line level inputs (-10dB to +18dBu)
• Versatile mix control supports 3 modes of operation - 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)
